for Commodore Amiga 2000, 2000HD, 2500, 3000(T), 4000(T)
Click on thumbnails for larger more detailed views.

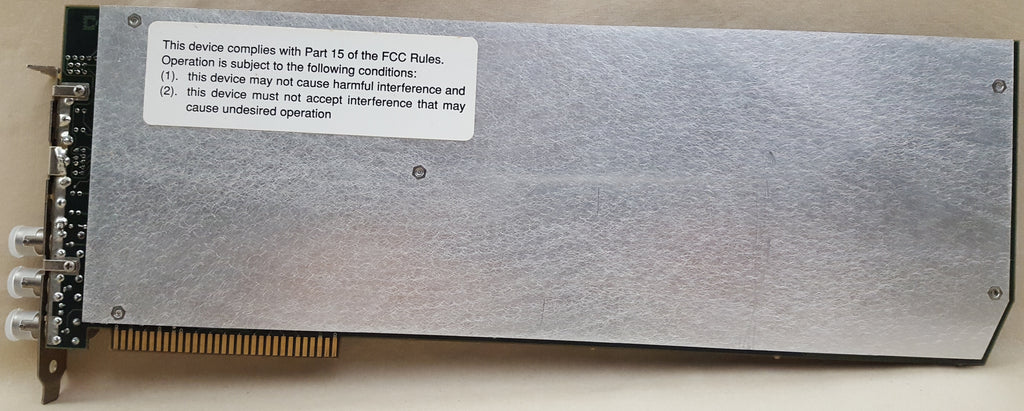

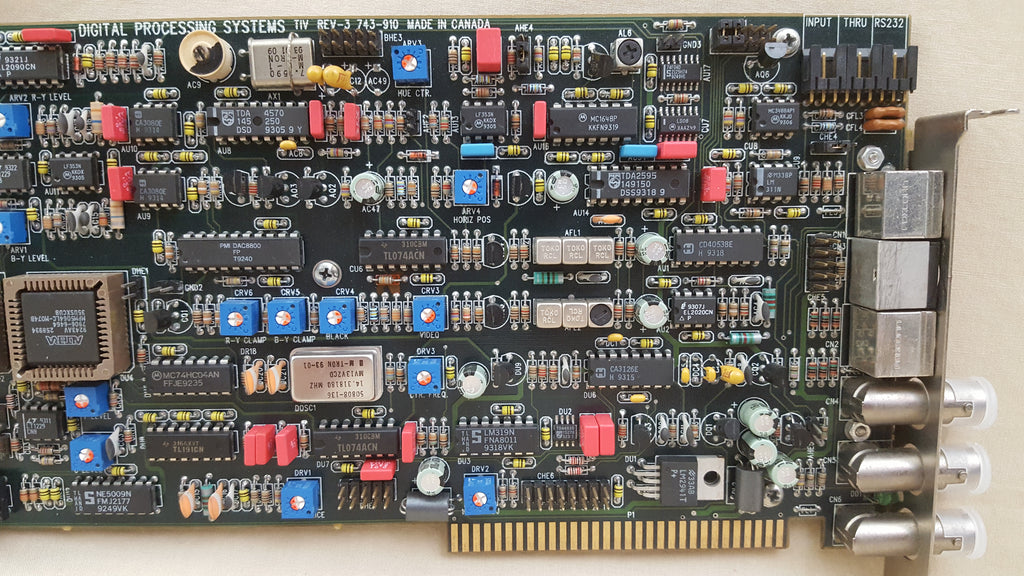

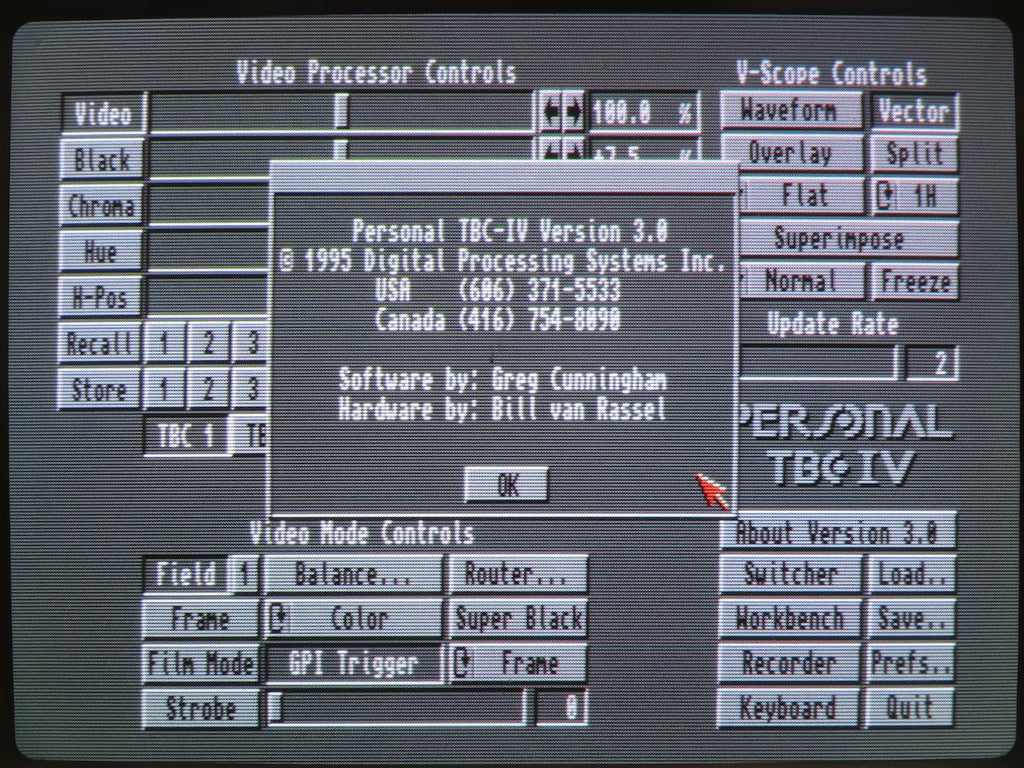

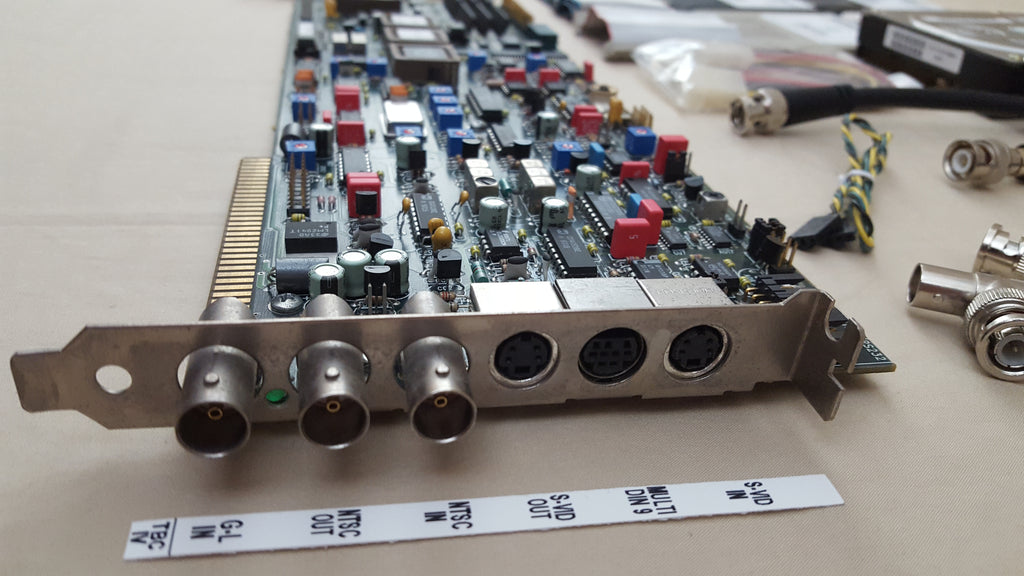

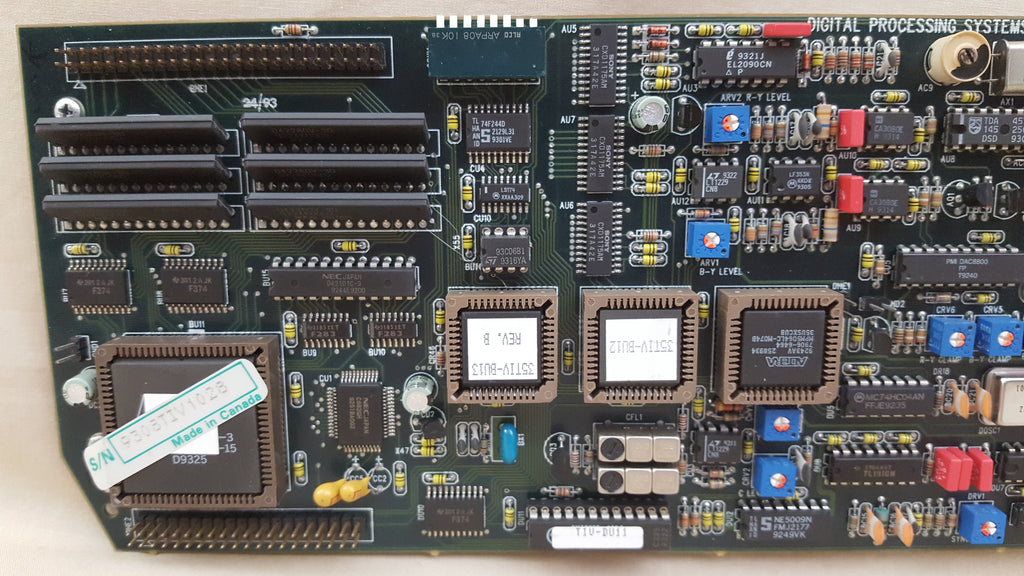

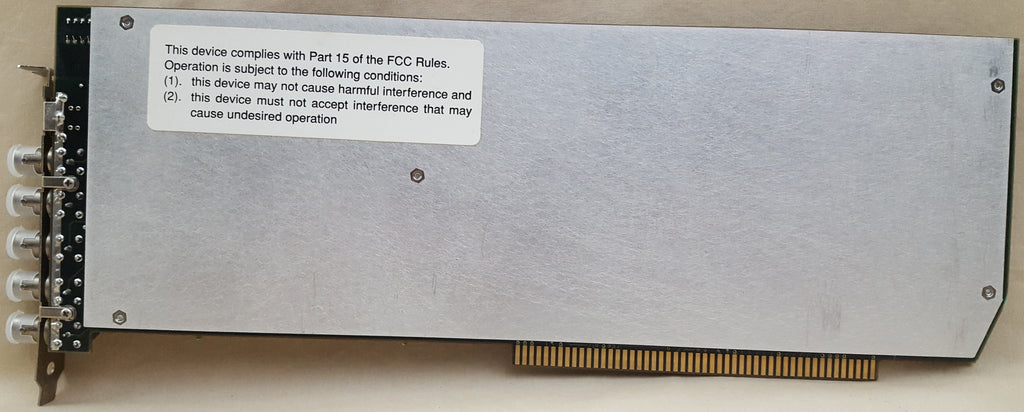

DPS Personal TBC-IV (VT-2600) The DPS Personal TBC IV card is designed to work in any IBM PC® compatible or AMIGA® 2000/3000/4000 series computer or in a DPS ES-2000/2200 Series Expansion System. The TBC IV features both composite and S-Video (S-VHS or Hi8®) Inputs and outputs. The TBC IV interfaces virtually any VCR, laser disk player or camcorder to production switchers or computer video systems like the NewTek Video Toaster®. Special Features include Rock Solid Freeze (Both Field and Frame), GPI Freeze, Variable Strobe, Forced Monochrome and Advanced Sync, All video proc amp functions, system timing, scene memories and color balance can be adjusted with DPS Personal Series software. Serial control data is fed to the card via the rear panel mini DIN-9 connector or via an on board input header. The card obtains its power from the expansion slot but does not require any other bus signals. Features
|

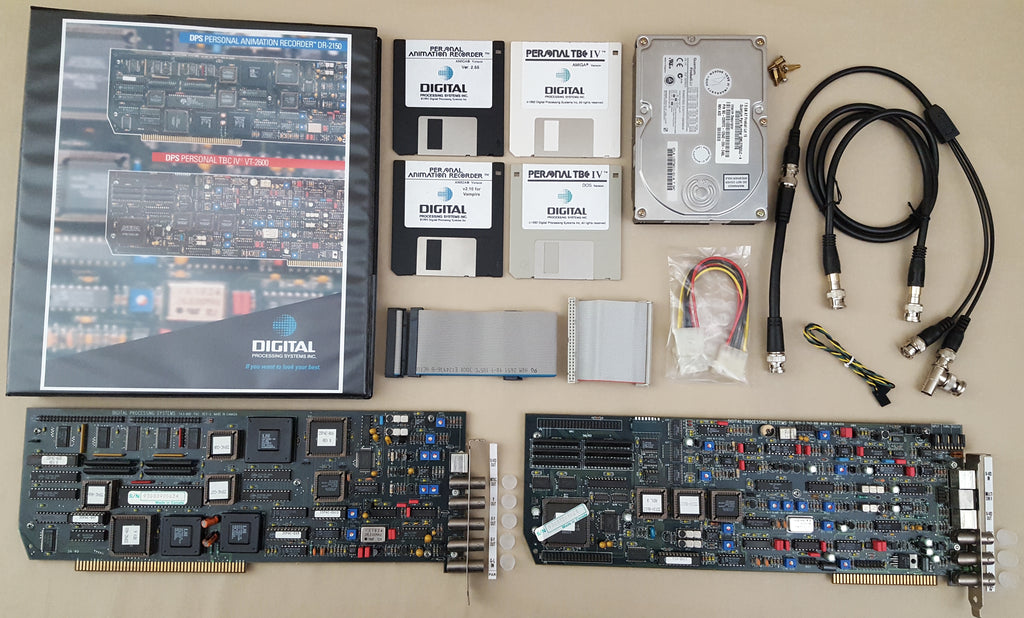

TBC-IV Card comes with Internal Serial Control Cable,
(2) BNC-RCA Adaptors, copy of Manual and the Latest Amiga/PC/DOS Software Install Disks.

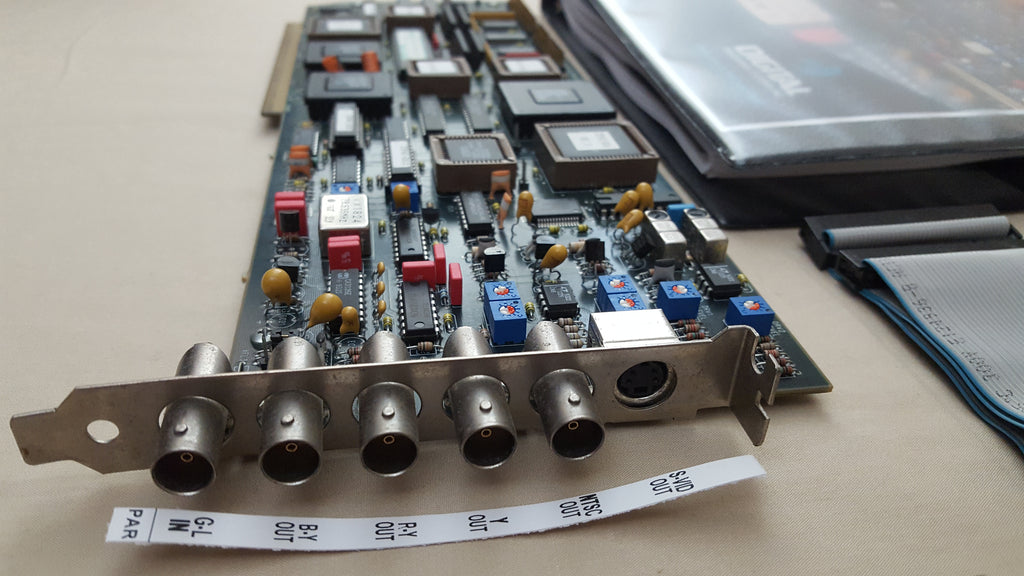

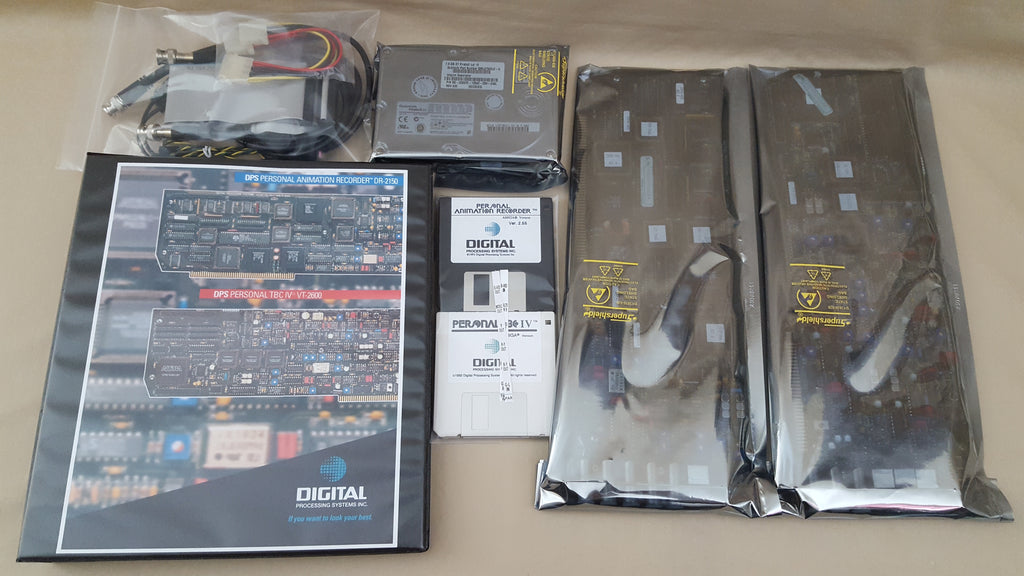

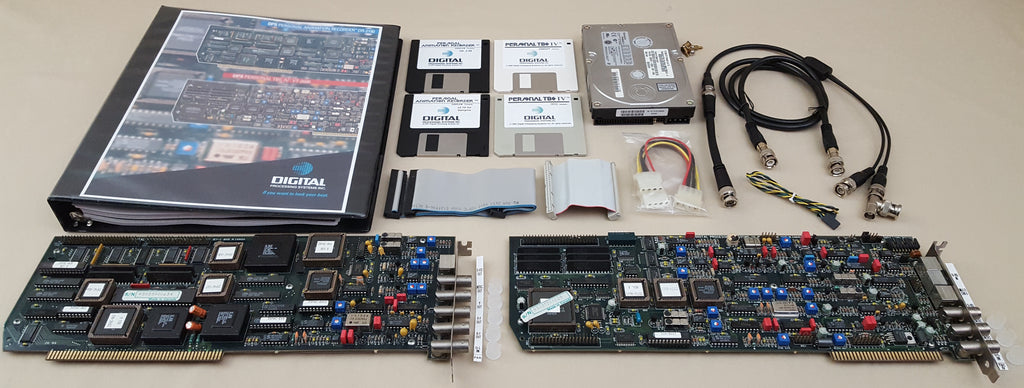

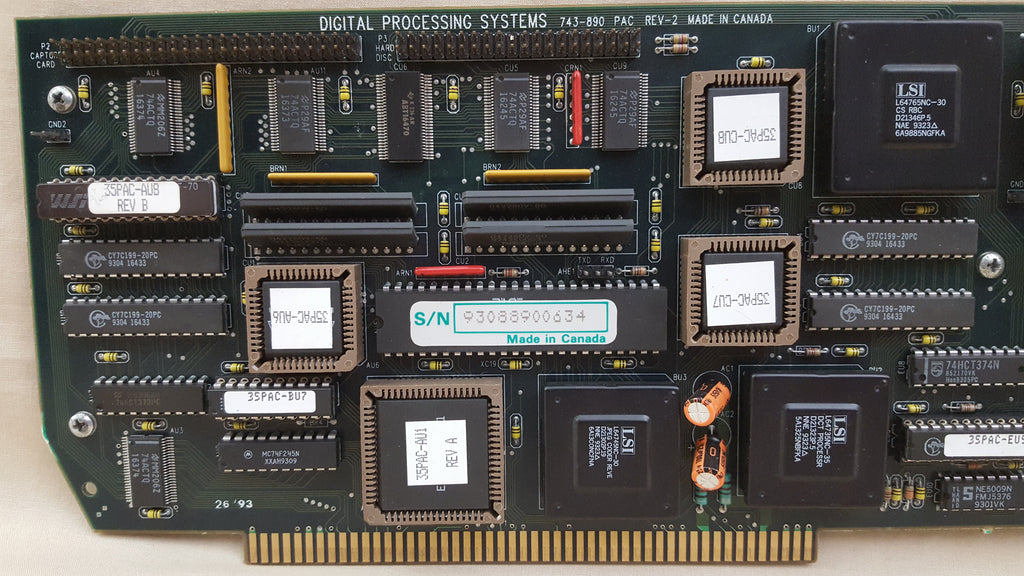

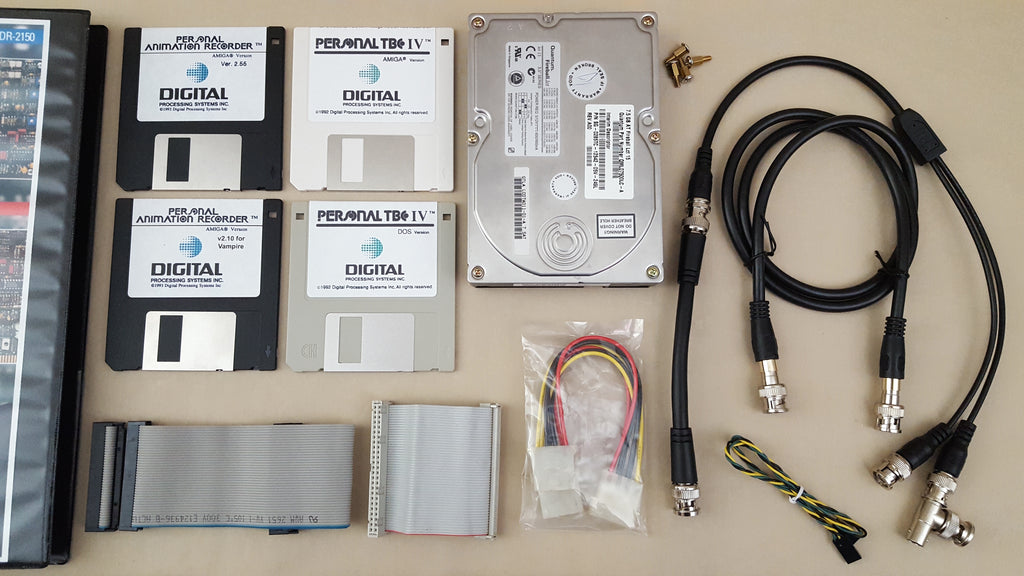

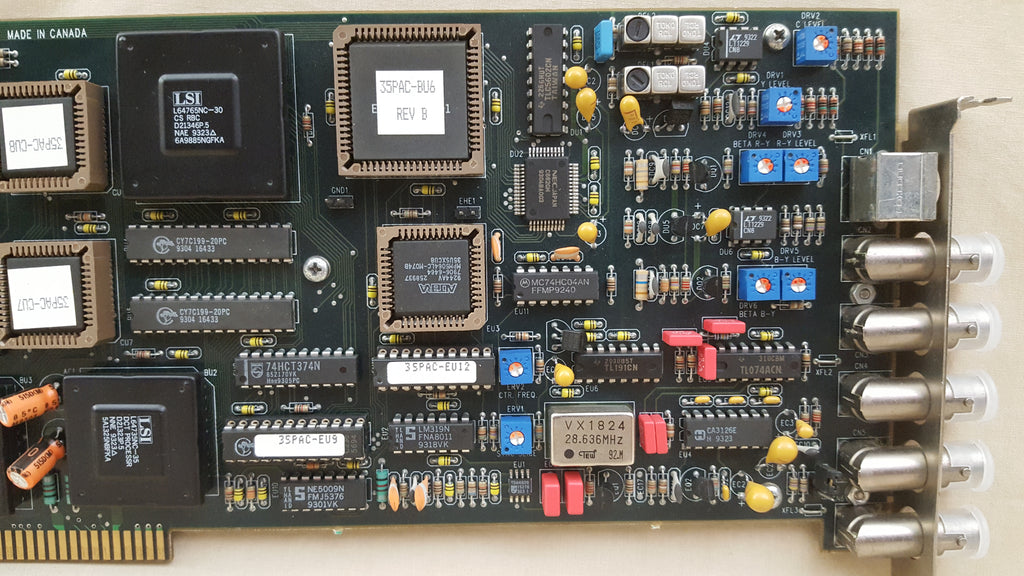

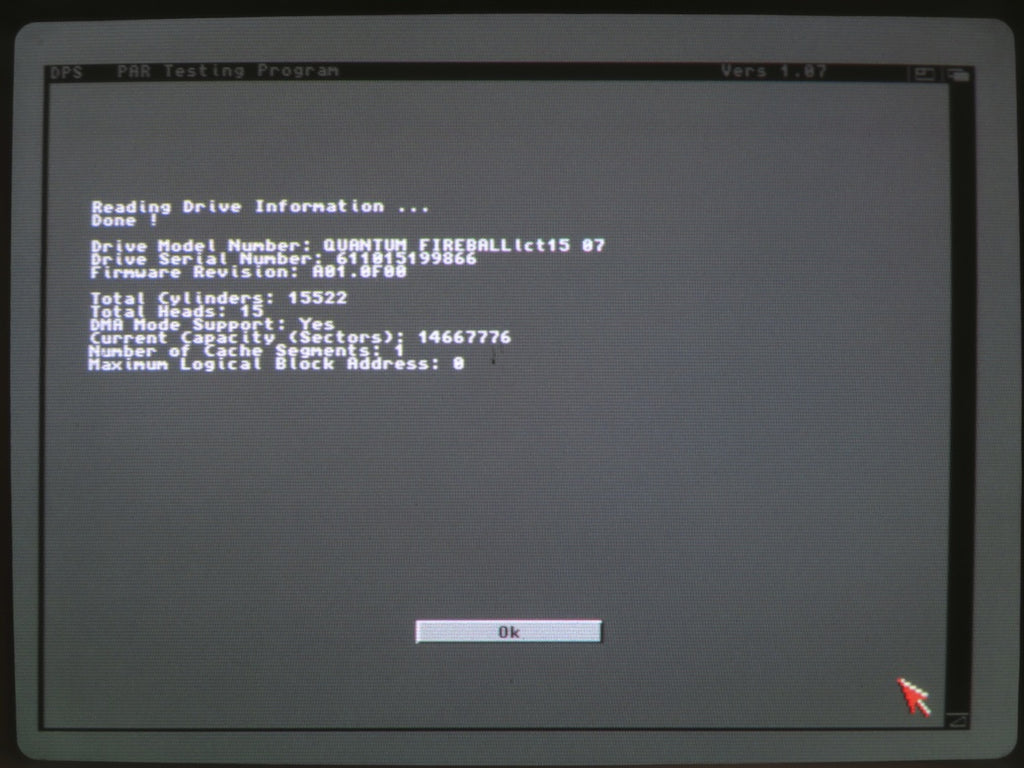

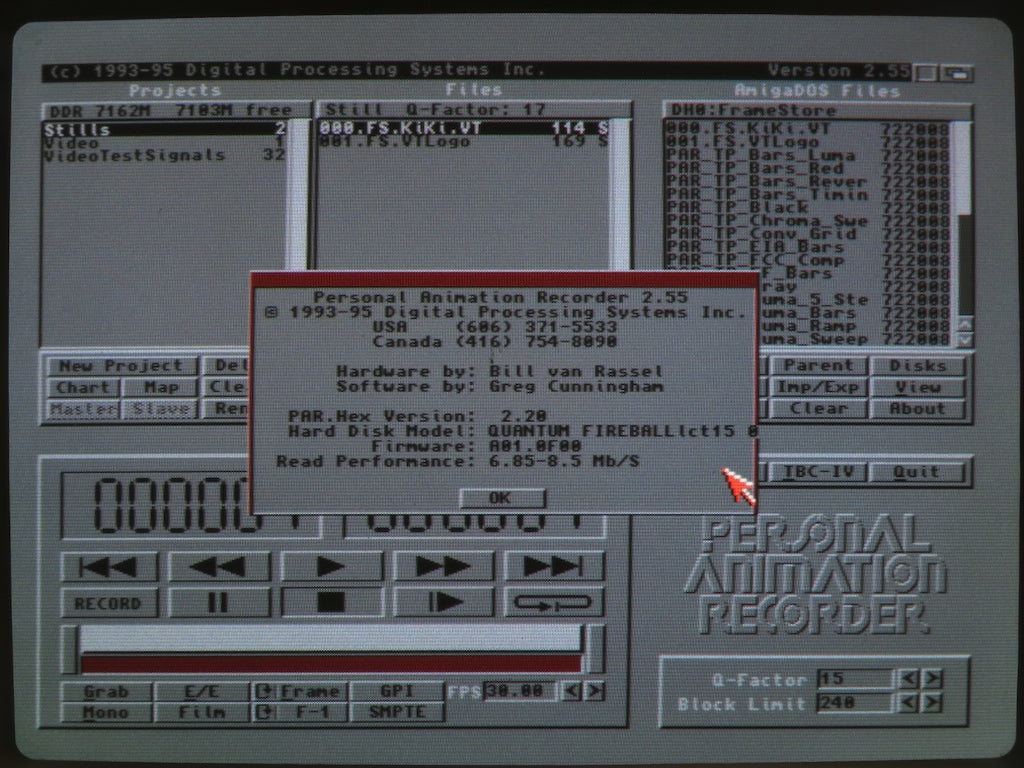

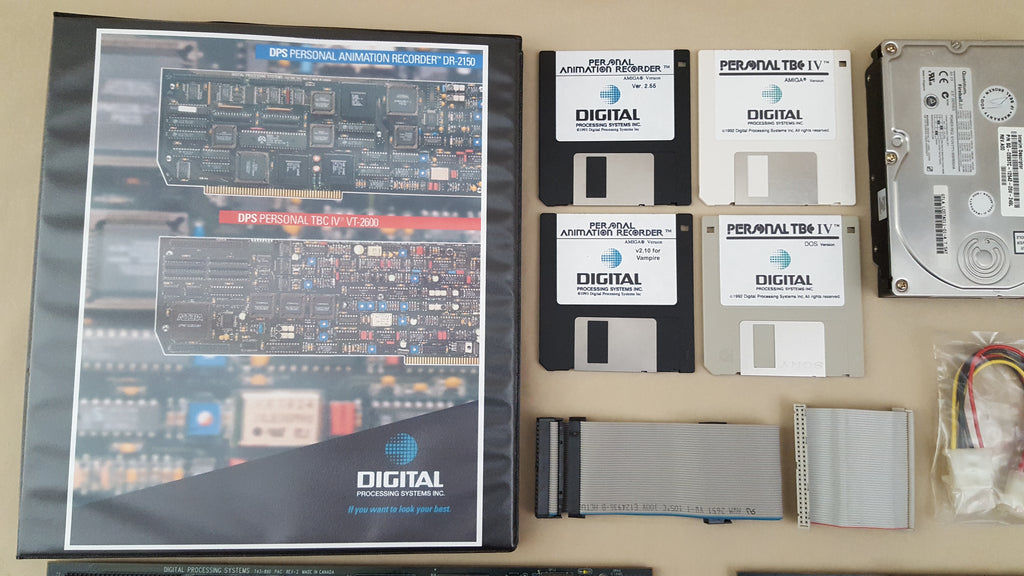

PAR comes with PAR Card, 7.0gb 40pin IDE Harddrive, 40pin 2-Connector IDE ribbon cable,
3" Communication ribbon cable, 1 Y-Splitter Power Cable, 3' RCA/BNC-RCA/BNC Cable,
BNC-BNC Y-Splitter Cable, Rear Port Label Stickers, copy of Manual in 3-Ring Binder and

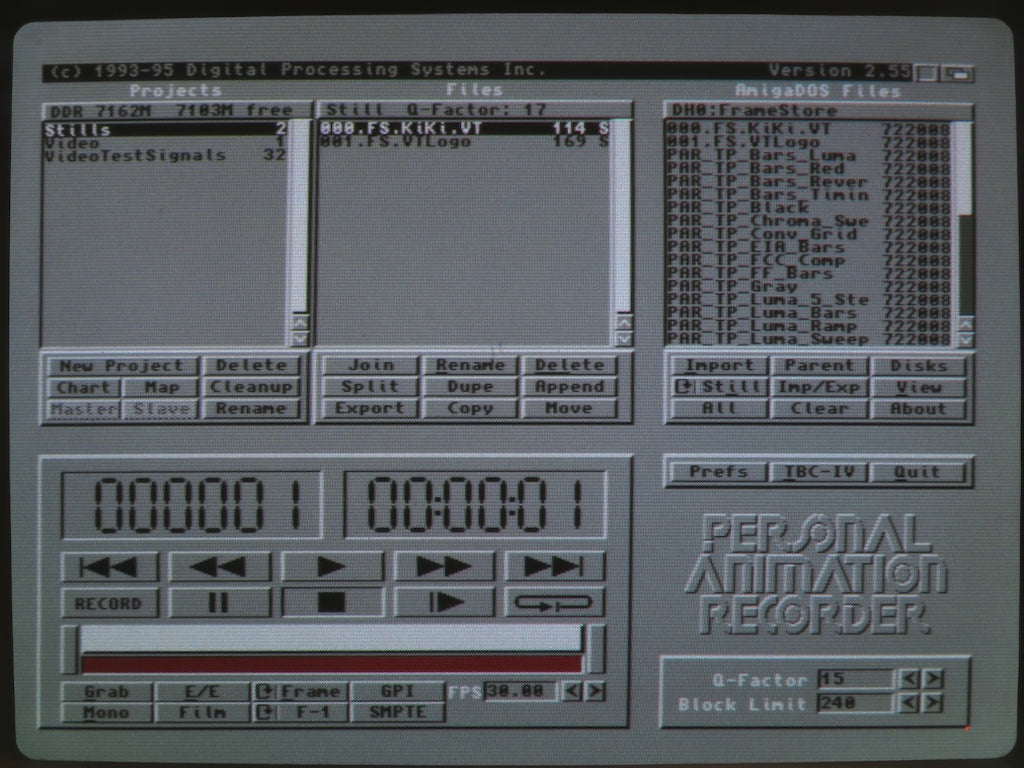

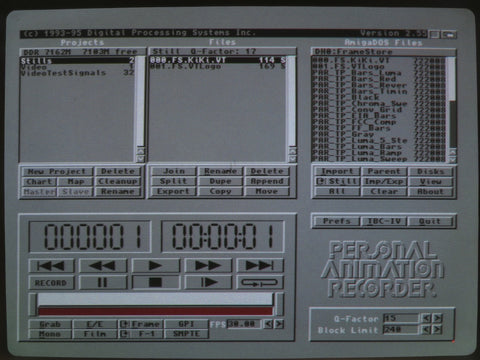

Latest v2.55 Install Disk and v2.10 Install Disk for Vampire Users.
TBC-IV comes with Amiga 2000 Internal Serial Control cable. If installing into an Amiga 3000 or 4000,
an External Serial Control cable is needed to control the TBC-IV, which can be found here:
External Serial Control Cable
If out of stock, pinouts to make your own cable is in the manual.
All Tested in Excellent Working Condition and
Guaranteed Against DOA!

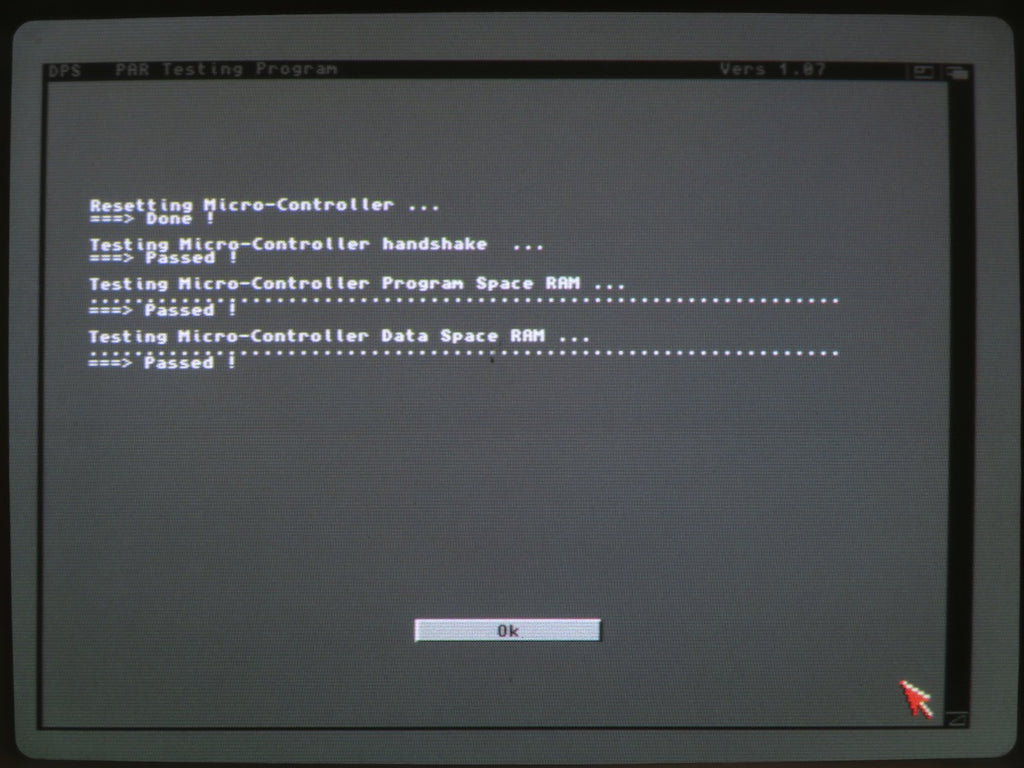

The video below is a direct capture from the PAR composite output.
Looks ok on LCD/LED Monitors, but looks awesome on CRT Monitors.
